Railway Bogie Spring

What is Railway Bogie Spring ?

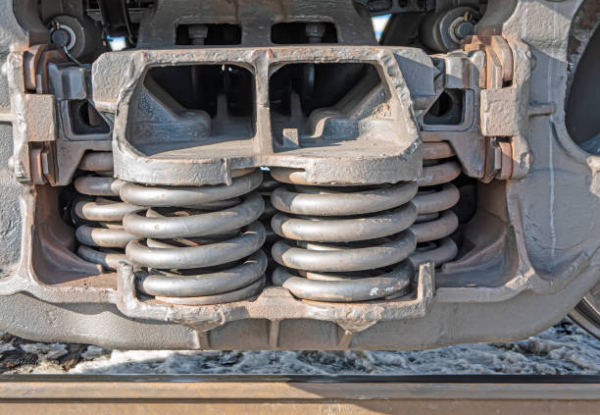

Railway Bogie Spring is a crucial component of a Railway Bogie suspension system. It is designed to absorb shocks and vibrations as the Train travels along the tracks, providing a smoother ride for passengers and reducing wear and tear on the Train and tracks.

Railway Bogie Spring types :

There are several types of Springs used in Railway Bogies, each designed for specific performance characteristics :

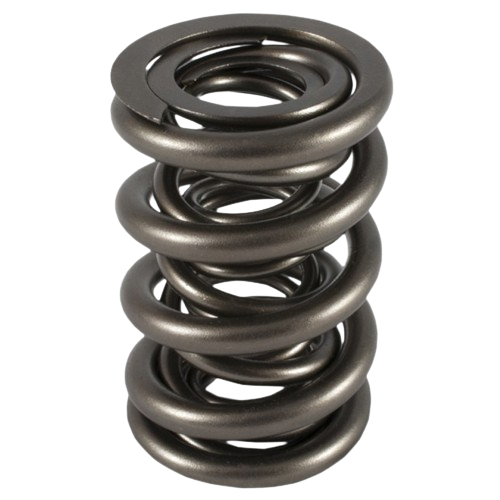

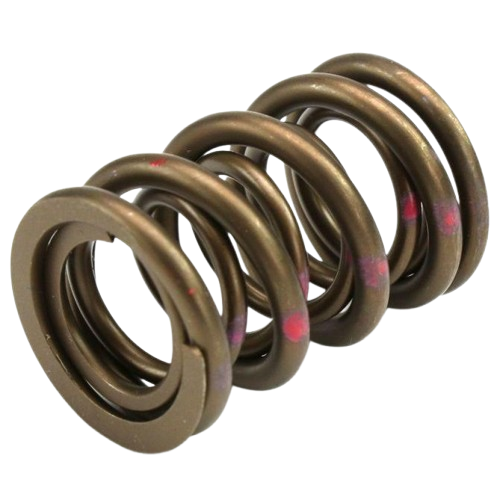

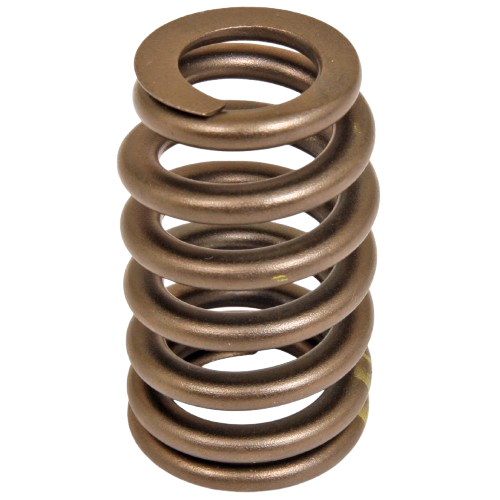

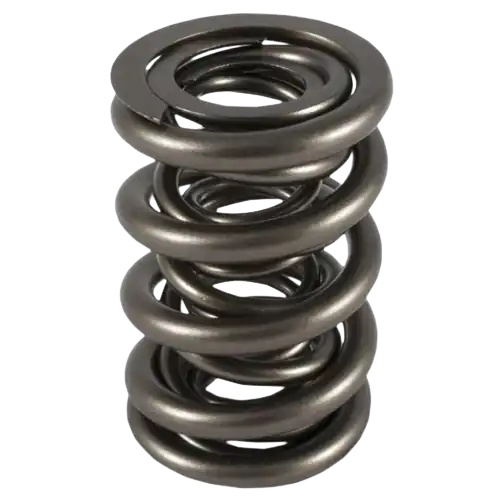

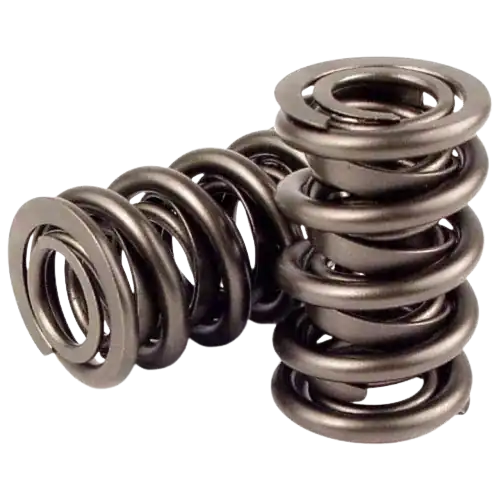

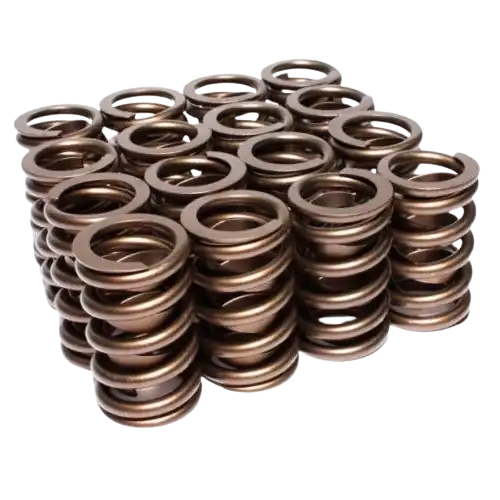

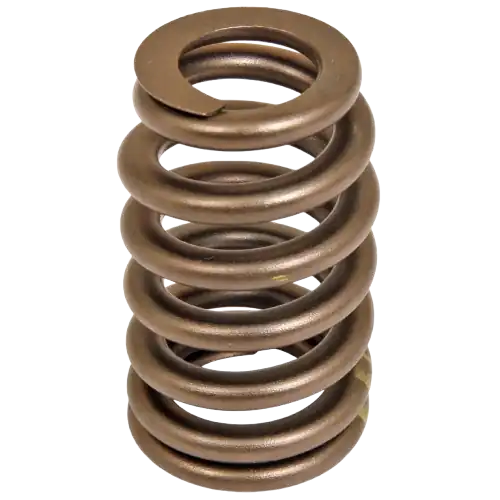

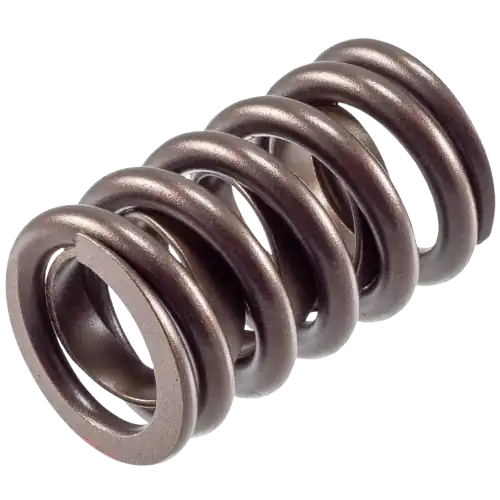

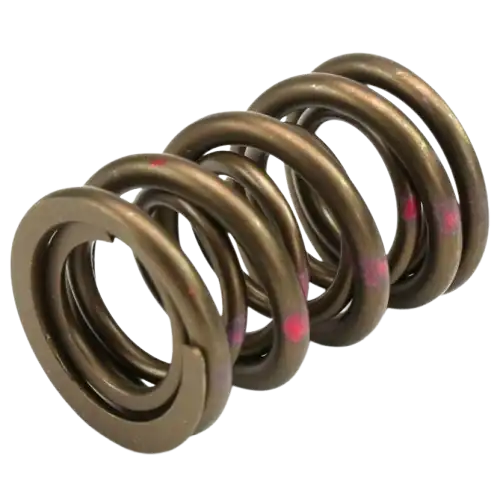

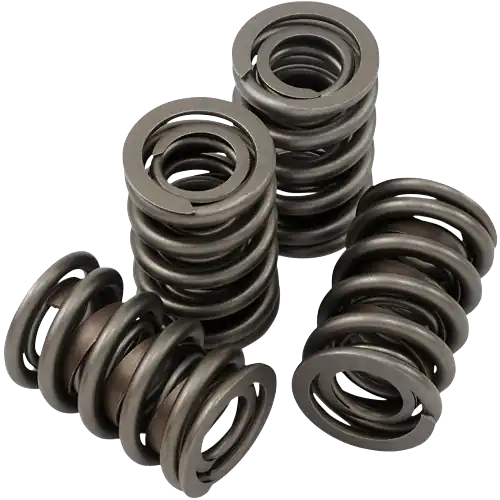

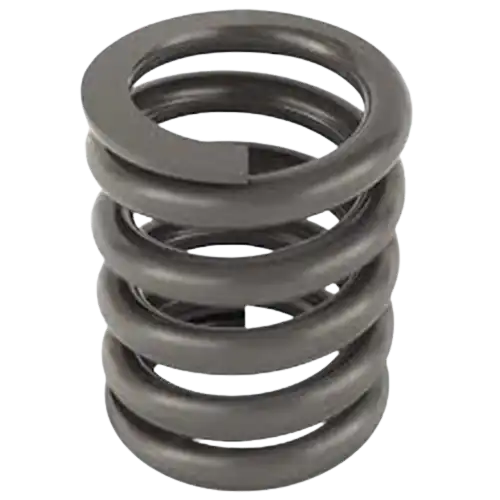

Railway Bogie Coil Spring : These are the most common type of Springs used in Railway Bogies. They are made of coiled steel wire and provide good shock absorption and load distribution.

Railway Bogie Leaf Spring : These are made of layers of flat, flexible steel plates bolted together. They are traditionally used in older railway vehicles and offer a combination of flexibility and strength.

Railway Bogie Spring manufacturing process :

The manufacturing process of Railway Bogie Springs, including Coil Spring and Leaf Spring, involves several stages to ensure they meet the stringent requirements for strength, durability, and reliability. Below is an overview of the manufacturing process for each type of Spring :

Railway Coil Spring : These are made by heating steel rods to high temperatures and then coiling them around a mandrel. After forming they undergo quenching and tempering to achieve the desired hardness and flexibility. The Springs are then shot-peened to improve fatigue strength and coated for corrosion resistance.

Railway Leaf Spring : These are produced by cutting steel into required lengths, then heating and shaping them into the desired arc. The leaves are assembled, clamped together and subjected to heat treatment for strength. Finally they are painted or coated for protection against rust and wear.

Why are we the best in this segment ?

40 years of experience : With four decades of expertise, we bring unparalleled knowledge and skill to the manufacture of railway bogie springs.

Quality control system : Our rigorous quality control processes ensure that every product meets the highest standards of reliability and performance. Our ISO 9001:2015 certification demonstrates our commitment to consistent quality and continuous improvement.

Satisfied Worldwide customers : Our global clientele trusts us to deliver superior products and exceptional service.

Competitive price range : We offer high-quality products at the most competitive prices in the market ensuring excellent value for our customers.

Our manufacturing capacity :

Wire Dia. – upto 70 mm.
Outer Dia. – upto 500 mm.
Total Coils – As per user’s requirement.
Free Height – upto 1000 mm.
Load Capacity – upto 40 Tons. (per pc.)

Spring Steel Grades used : BS:970 EN-42, BS:970 EN-45, BS:970 EN-47, 50Cr.V4, 50Cr.4V2, 51Cr.V4, 50Cr.MoV4, 50Si7, 55Si7, 60Si7, SUP-9, SUP-9A, SAE-5160, IS:4454 Part-1 Grade-2, IS:4454 Part-1 Grade-2D, Stainless Steel etc. and others similar foreign grades JIS, ASTM etc.

Painting and Coating : Synthetic Enamel Paint, Powder Coating, Phosphate, Zinc Coating etc.
